A special agitator shaft with symmetrically arranged agitator pegs and sleeves of tungsten carbide for wear protection devel- Vertical, batch operation mill for the preparation of tungsten Ideal flow behaviour due to a special agitator peg arrange-ment and the hemispherically shaped chamber floor integrated screen plate for grinding media separationIntensive cooling through a double-wall grinding tank and cooled circulation pipeline

Product inlet via rotor / immersion tube system prevents back flow of grinding media into the feed line.

Generally, there are two ways to obtain nano-powders. A bottom-up manufacturing method (bottom up) for chemical methods, such as chemical precipitation, sol-gel process (sol-gel),... Another method is physical method, which changes the powder particles from big to small (top down), such as mechanical ball milling,... And so on.

The Development In 1963, the first vertical agitator was developed internationally, the first horizontal agitator was developed in 1975, the first horizontal agitator bead mill with eccentric disks was introduced to the public and the horizontal disc grinder was introduced, in 2004, which became the industry standard. In the following years, the grinding media separation systems, the geometry of the grinding disks and the various grinding chamber materials were further developed.

The grinding system pin nanomill shows the evolutionary develop- ment of system with the rotor-slotted pipe separating system. The enclosed horizontal agitator mill is designed for highest product throughput rates and possesses a pin grinding system for highest grinding intensity.

In 2011, we developed the first zirconia comminution chamber technology in China. It has no metal ion pollution and is used in batteries, pharmaceuticals, glazes, ink and food.

工作原理:
|

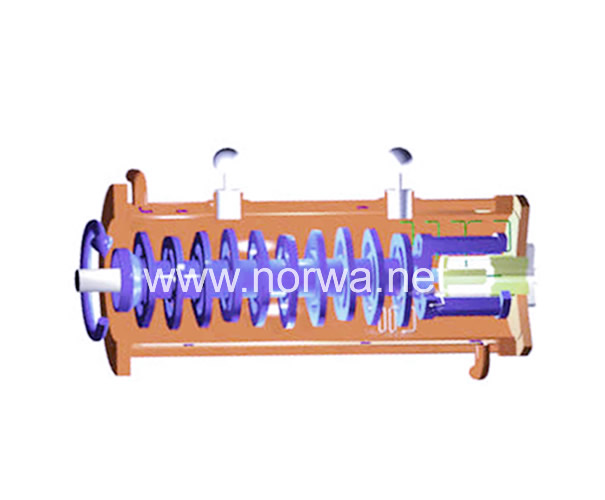

NORVA諾研高效亞微米臥式砂磨機采用先進的三偏心凸輪盤按照一定順序安裝在攪拌軸上,物料在進料泵的作用下進入研磨腔,入口的設計是在驅動連接法蘭的一端,物料的流向與機械軸承向反底端一方,大大減輕了機械密封的承受壓力,延長其使用壽命,在攪拌軸偏心盤高速運轉中,物料和研磨介質的混合物發生高效相對運動,能量傳遞穩定無死角,其結果,物料固體顆粒被有效分散、研磨,經一組轉子縫隙分離過濾器后,得到一個較窄正態粒度分布優質產品。 |
|
結構設計:德國懸臂式三偏心凸輪盤設計
主要特點:
*物料研磨細度可達亞微米級別≤0.7 μm
*合理的研磨腔德國三偏心凸輪盤式設計,是大量實驗數據的結果,并按一定流體力學順序排列。
*整個研磨腔體徑向受力, 大面積三偏心凸輪盤產生高密度研磨能量,研磨介質在物料上產生均勻的能量平衡
*工作方便靈活,便于操作
*連續性地高能研磨流程
*可方便更換不同材料的研磨腔零備件
*研磨介質細度可選范圍在0.1 - 3mm
*高效動態分離器系
*高產能。效率是同類傳統砂磨機的3-5倍。
|
研磨筒
|
偏心盤材質
|
研磨軸
|
分離系統(mm)
|
研磨筒體內襯材質
|
筒體密封
|
研磨介質
|
|
特耐磨鋼帶冷卻
|
合金耐磨鋼[日本]、 三菱聚氨酯[日本] |
不銹鋼
|
LDC大流量動態分離器
|
DIN耐磨鋼
|
進口雙端面機械密封
|
氧化鋯珠
|
|
研磨容積(L)
|
加工批量(L)
|
轉速((r/min)
|
驅動功率
|
Min細度(μm)
|
長度
|
寬度
|
高度
|
重量
|
|
15
|
50-500
|
700-1300
|
15
|
≤0.3
|
1530
|
650
|
1700
|
800
|
